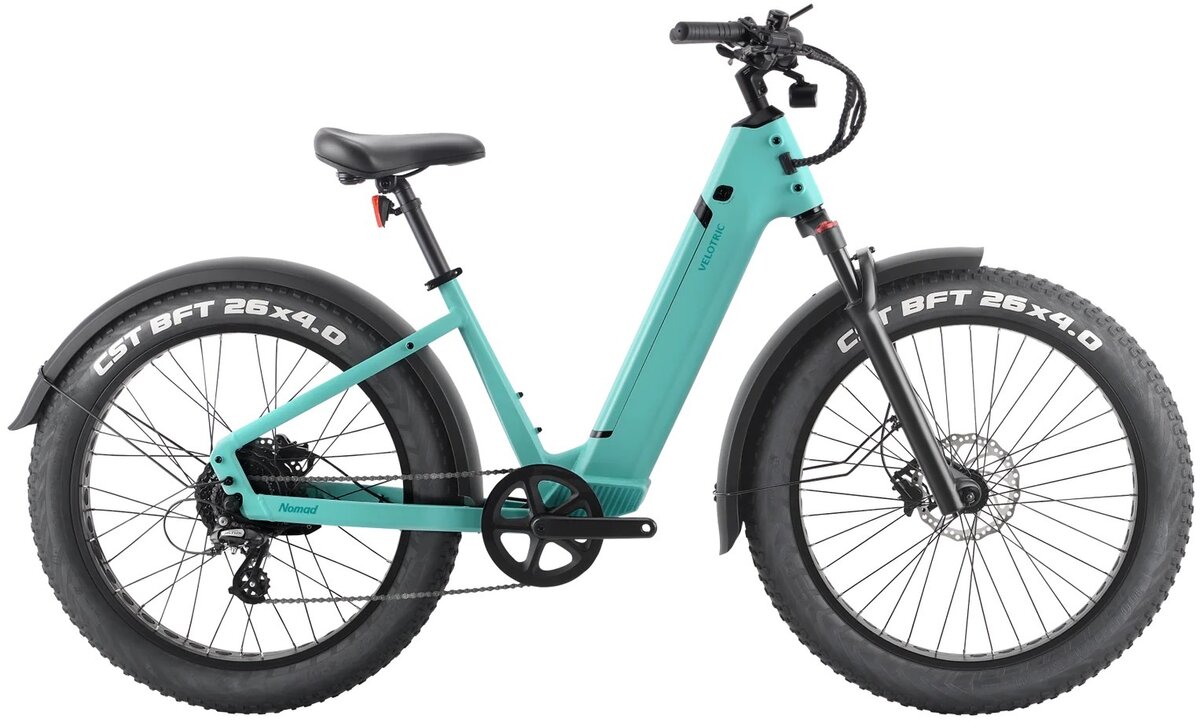

Velotric Nomad 1 Step-Thru Fat Tire
Details
*** CALL OR TEXT US 651-478-2200 TO CONFIRM AVAILABILITY AND PRICE. WE PRICE MATCH VELOTRICBIKE.COM. FREE REAR RACK AND PROFESSIONAL ASSEMBLY WITH PURCHASE ***
The Velotric Nomad 1 fat tire e-bike was made to carry you through any weather and across all terrains. It’s our most versatile and powerful e-bike yet, with a 750W high performance motor (peak 1200W) and a 75Nm torque. Even at 8 degrees uphill, it’ll provide a smooth, effortless riding experience.
Equipped with a 21700 48V 14.4Ah removable battery made by Samsung, the Velotric Nomad 1 features a 50% longer range compared to similar bikes in the market. Up to 55 miles on a single charge.
- One size, Rider Heights: 5’1” - 6’4”
- 48V 14.4Ah, 750W Class 2 with Throttle Assist.
- 5-level pedal assist, Walk mode, USB charging.
- Frame with Fully-integrated Battery Design.
- Hydraulic Disc Brakes. Shimano 8-speed.
- UL 2271 Certified Battery included.
FRAMESET |
|
| Frame | Aluminum alloy, fully integrated & lockable down tube battery, internal cable routing, front and rear fenders, quick release seatpost clamp |
| Fork | Hydraulic suspension with 80mm travel, with Lock-out |
ELECTRONICS |
|
| Motor Hub | 48V, 750W (peak 1200W),max torque 75Nm |
| Battery | 48V, 692Wh, UL 2271 certificated |
| Cell | Tesla-grade 21700, made by LG/Samsung |
| Charger | 48V, 3.0A, operates on 100V-240V AC, 5-6 hr charging |
| Display | 3.5” Backlit LCD display with speed, trip, battery, assist level and more |
| USB Port | 5V 500mA, output for external devices |
| Throttle Assist | Thumb-control, removable |
| Headlight | High output integrated LED, adjustable angle |
SPEED & RANGE |
|
| Pedal Assist Range | 55miles |
| Throttle Range | 52miles |
DRIVETRAIN |
|
| Chainrings | 46T |
| Crankset | Aluminum alloy, 170mm |
| Cassette | 8-Speed, 13-34T |
| Chain | KMC-Z8 |
| Rear Derailleur | Shimano RD-M310, 8-speed |
| Shift Lever | Shimano SL-M315, 8-Speed, thumb shifter |
BRAKE |
|
| Brake | Hydraulic disc brakes |
| Rotors | 180mm front and rear |
| Brake Levers | Aluminum alloy, with adjustable reach and power cutoff switch |
WHEEL |
|
| Rims | Aluminum alloy, 36H |
| Tire | 26x4.0”, puncture-resistant liner |
COCKPIT |
|
| Handlebars | Aluminum alloy, 31.8mm, 700mm wide |
| Grips | Durable ergonomic Grips |
| Stem | Velotric customized, 10-Degree rise |
| Saddle | Comfort ergonomic seat, 220mm wide |
| Seat Post | Aluminum alloy, 350mm x 30.4mm, quick release clamp |
SUPPORTS |
|
| Fenders | Front and rear full coverage |
| Pedals | 9/16’’ Alloy platform with reflectors |
| Kickstand | Heavy-duty aluminum with wide foot |
WEIGHT& LOAD |
|
| Bike Weight | High-step 73lbs Step-thru 72lbs |
| Front rack Load Capacity | 33lbs |
| Rear rack Load Capacity | 55lbs |
| Max Bike Load | 440lbs |
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Indigo Gray | 210000002964 | 210000002964 |
