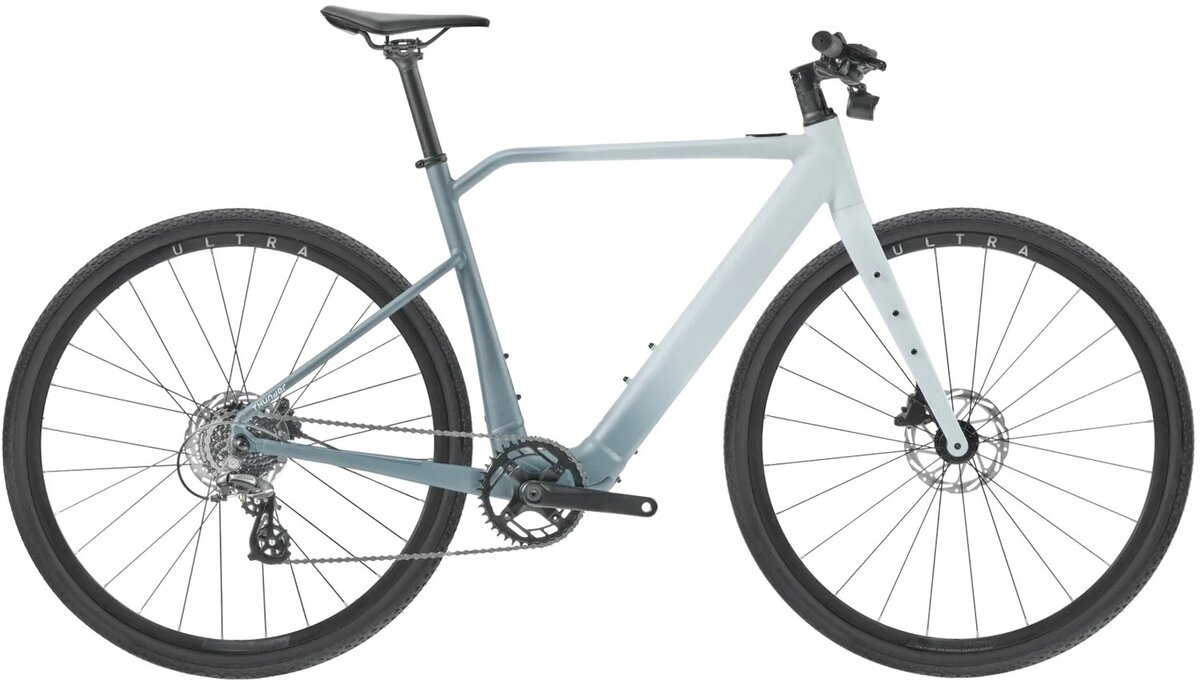

Velotric T1
Details
*** CALL OR TEXT US 651-478-2200 TO CONFIRM AVAILABILITY AND PRICE. WE PRICE MATCH VELOTRICBIKE.COM. FREE PROFESSIONAL ASSEMBLY WITH PURCHASE ***
Introducing the T1. Sleek, lightweight & powerful. Our first smart bike, engineered for everyday enjoyment.
Powered by our proprietary drive system E35+ with torque sensor technology.
36V 9.8Ah Battery, 350W Motor, 2-side Torque Sensor.
Top speed 20 MPH, Class 1. 25 MPH (Unlock)
5-level pedal assist, Walk mode.
36 lbs, 6061 Aluminum alloy Frame and Fork.
Tektro Hydraulic Disc Brakes.
Shimano 8-speed.
Velotric Smartphone App, Velotric Smart+ Sensor.
Anti-Theft Alert, Keyless Unlock, GPS Tracking, Ride Customization via Riding Modes, Ride Tracking, Health Tracking, Auto Headlight.
FRAMESET |
|
| Frame | 6061 Triple-Butted Aluminum Alloy Frame, Integrated Cable Routing, Internal Battery, Flat Mount Disc, Rack and Fenders Compatible |
| Fork | 6061 Aluminum Alloy, Internal Brake Routing, 12x100mm Thru-axle, 1-1/4” to 1-1/8” Tapered Steerer,Fenders Compatible |
ELECTRONICS |
|
| Motor Hub | 350W, Peak 600W, 45Nm |
| Battery | 36V, 9.8Ah, 352.8Wh |
| Cell | Samsung 21700 |
| Charger | 36V, 2.0A, Operates on 100V-240V AC, 50-60Hz |
| Charging Time | 0-80% 4 Hours, 0-100% 6 Hours |
| Sensor | 2-Side Torque sensor |
| Control Panel | Fingerprint Unlock Automatic Rider Recognition Battery Indicator PAS Indicator Auto Headlight Auto Brightness Control |
| Security | Theft Alert, GPS-Tracking, Fingerprint and Bluetooth Unlock |
| Headlight | Light Sensing, 6v/3w/45Lux High-Output Integrated LED, Adjustable Angle |
| Pedal Assist | Eco, Tour, Normal, Sport and Turbo Pedal Assist |
| Walk Mode | 2.9 MPH |
| Water Resistant | IPX6 |
WEIGHT& LOAD |
|
| Bike Weight | 36lbs |
| Max Bike Load | 330lbs |
ACCESSORIES |
|
| Fenders | Supported, buy separately from VELOTRIC |
| Rear Rack | Supported, buy separately from VELOTRIC |
| Range Extender | 36V, 4.9Ah, 176.4Wh |
SPEED & RANGE |
|
| Max Speed |
20 MPH, Class 1
|
| Max Speed (Unlock) | 25 MPH |
| Max Range | Up to 70 miles |
| Chainrings | PROWHEEL Pro Aluminum Alloy, 40T Narrow Wide Chainring |
| Crankset | Aluminum Alloy, 170mm |
| Cassette | SHIMANO 8 Speeds, 11-32T |
| Rear Derailleur | SHIMANO M310-8 |
| Shift Lever | SHIMANO M315-8 |
| Chain | KMC Z8.3 |
BRAKE |
|
| Brake | TEKTRO HD-R280 Hydraulic Disc Brake |
| Rotors | 160mm Front and Rear |
| Brake Levers | TEKTRO HD-R280 Aluminum Alloy, with adjustable reach |
WHEEL |
|
| Rims | 700c Disc, Double-Wall Aluminum Alloy, Pinned (F) 24 Hole / (R) 28 Hole |
| Front Hub | NOVATEC Aluminum Alloy J-Hook Disc Hub,12x100mm Thru-Axle |
| Tire | 700x38c Ebike Puncture Resistant Tires |
COCKPIT |
|
| Handlebars | 6061 Aluminum Alloy, F31.8mm, 680mm |
| Grips | VELOTRIC Sports Grips |
| Stem | 6061 Aluminum Alloy, 3D-Forged Alloy, 8-Degree Rise, 31.8mm Clamp, Garmin Mount Compatible |
| Saddle | SELLE ROYAL SRX |
| Seat Post | 6061 Aluminum Alloy, 30.9 x 300mm |
SUPPORTS |
|
| Phone Mount | Adapt GoPro/Garmin |
| Pedals | Aluminum Alloy |
| Kickstand | Aluminum Alloy |
| Size M | Size L | |
|---|---|---|
| Seat Tube Length | 480mm | 525mm |
| Seat Tube Angle | 73° | 73° |
| Min Saddle Height | 810mm | 855mm |
| Max Saddle Height | 982mm | 1025mm |
| Head Tube Length | 115mm | 135mm |
| Head Tube Angle | 71° | 71° |
| Stack | 546mm | 565mm |
| Reach | 438mm | 447mm |
| Stand-Over Height | 757mm | 805mm |
| Top-Tube Length (Horizontal) | 600mm | 615mm |
| BB Drop | 70mm | 70mm |
| Fork Rake/Offset | 55mm | 55mm |
| Front-Center | 664mm | 680mm |
| Rear-Center | 445mm | 445mm |
