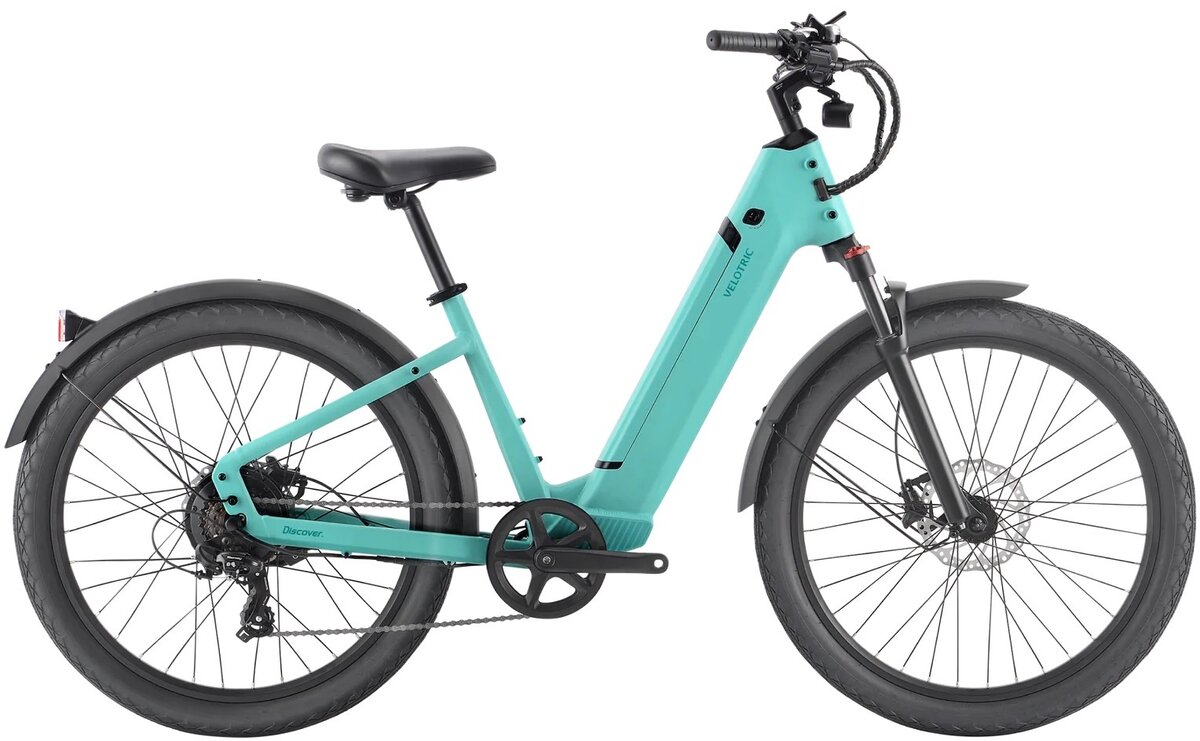

Velotric Discover 1 Step-Thru
Details
*** CALL OR TEXT US 651-478-2200 TO CONFIRM AVAILABILITY AND PRICE. WE PRICE MATCH VELOTRICBIKE.COM. FREE REAR RACK AND PROFESSIONAL ASSEMBLY WITH PURCHASE ***
If web site shows out of stock, give us a call, we should have one available for test riding. We have quick turnarounds on special orders, and you get the color you want.
Rider Heights: 5’1” - 6’4”
500W high performance motor (peak 900W) and a 65Nm torque for a smooth, exciting and effortless riding experience even at 8 degrees uphill.
Equipped with 21700 48V 14.4Ah removable battery made bySamsung, the Velotric Discover 1 features a 50% longer range compared to similar bikes in the market. Up to 65 miles on a single charge. You only need to charge once per week.
Safety is our most important design philosophy. Not only we certified booth our battery and bike with UL®, one of the highest safest standard in the ebike industry. We rigorously tested our bike frames over 150,000 times under the toughest" conditions so that you never have to worry about our quality.
The Discover 1 is equipped with a rear light with braking high-beam function, IPX6 grade waterproof, and double Hydraulic-Disc Brakes offering riders extra safety in any conditions.
FRAMESET |
|
| Fork | Hydraulic suspension with 80mm travel, with Lock-out |
| Frame | Aluminum alloy, fully integrated & lockable down tube battery, internal cable routing, front and rear fenders |
ELECTRONICS |
|
| Motor Hub | 48V, 500W, max torque 65Nm |
| Battery | 48V, 692Wh, UL 2271 certificated |
| Cell | Tesla-grade 21700, made by LG/Samsung |
| Charger | 48V, 3A, operates on 100V-240V AC, 5-6 hours charging |
| Display | 3.5’’ Backlit LCD display with speed, trip, battery, assist Level and more |
| USB Port | 5V 500mA, output for external devices |
| Throttle Assist | Thumb-control, removable |
| Headlight | High output integrated LED, adjustable angle |
| Tail Light | Integrated with rear fender |
SPEED & RANGE |
|
| Pedal Assist Range | 65miles |
| Throttle Range | 58miles |
DRIVETRAIN |
|
| Chainrings | 42T |
| Crankset | Aluminum alloy, 170mm |
| Cassette | 7-speed, 14-28T |
| Chain | KMC-Z7 |
| Rear Derailleur | Shimano RD-TY300, 7-speed |
| Shift Lever | Shimano SL-TZ50, 7-speed, thumb shifter |
BRAKE |
|
| Brake | Hydraulic disc brakes |
| Rotors | 180mm front and rear |
| Brake Levers | Aluminum Alloy, with adjustable reach and power cutoff switch |
WHEEL |
|
| Rims | Double-wall aluminum alloy, 36H |
| Tire | 26 x 2.5’’, puncture-resistant liner |
COCKPIT |
|
| Handlebars | Aluminum alloy, 31.8mm, 660mm wide on Step-thru, 680mm wide on High-step |
| Grips | Durable ergonomic grips |
| Stem | Aluminum alloy, velotric customized, 10-degree rise |
| Saddle | Velotric urban comfort ergonomic seat, 220mm wide |
| Seat Post | Aluminum alloy, 350mm x 30.4mm, quick release clamp |
SUPPORTS |
|
| Fenders | Front and rear full coverage |
| Pedals | 9/16’’ Alloy platform with reflectors |
| Kickstand | Heavy-duty aluminum with wide foot |
WEIGHT& LOAD |
|
| Bike Weight | High-step 65lbs Step-thru 63.5lbs |
| Front rack Load Capacity | 33 lbs |
| Rear rack Load Capacity | 55 lbs |
| Max Bike Load | 440 lbs |
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Indigo Gray | 210000002043 | 210000002043 |
| Spring | 210000002046 | 210000002046 |
| Silver | 210000002044 | 210000002044 |
