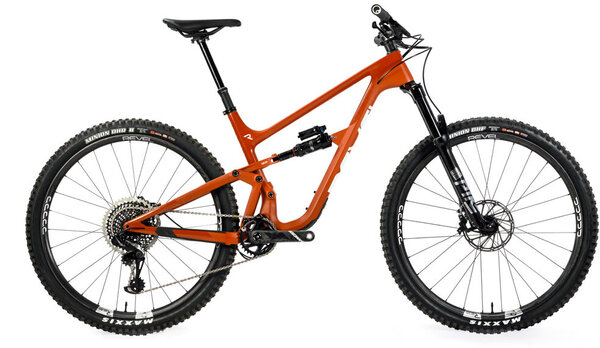

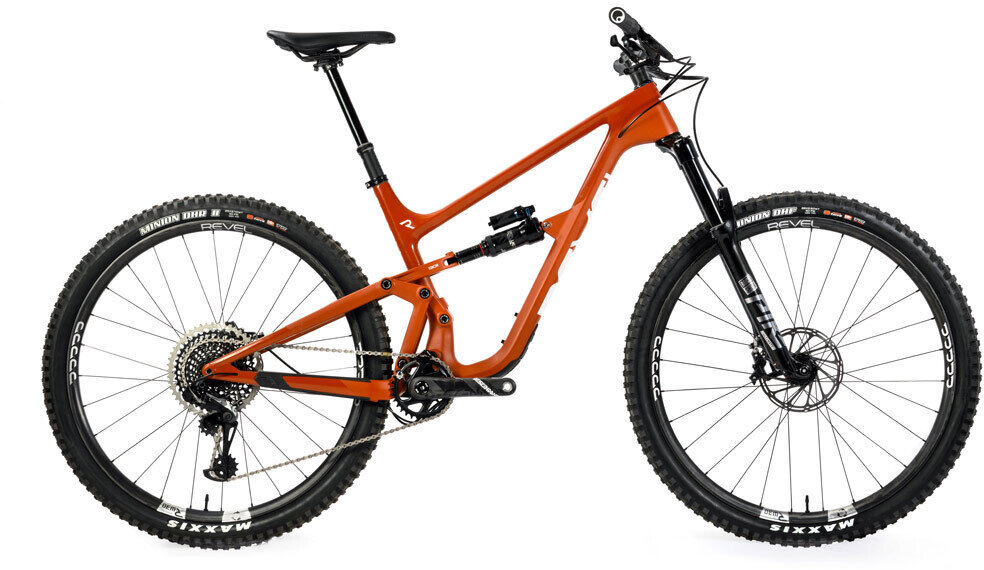

Revel Bikes Rascal 29" GX

Revel Bikes Rascal 29" GX
This item is currently not available.


*** Please contact us via text or phone at 651-478-2200 to confirm current availability. Additional sizes, colors and configurations may be available to special order. We will always price match current price on ***

At Revel Bikes, our goal is making the absolute best full suspension mountain bikes in the world. To do this, we are the only company using the mostly unheard of, yet legendary CBF suspension design. We use incredible carbon and composite fiber technology developed by experts in their field. We obsess over all the details because we love riding good bikes even more than making them.

The Rascal has a few unique geometry features, and the second you hop on this bike you’ll feel that it wants to go fast, uphill and down. Long and not too low, slack but stable. The short stays and ability to run a 130mm fork for speedy, more aggressive pedaling stance or a 140mm fork for a more balanced and capable ride, the Rascal will constantly surprise you.

CBF™ focuses on designing around the Center of Curvature (CC) and balancing that with the Instant Center (IC). Until now, most suspension systems have focused solely on the IC. CBF points the chainline and drive forces directly into the IC throughout 100-percent of the travel by balancing the CC over the chainring, resulting in maximum pedaling efficiency, regardless of where you are in the travel, what terrain you are on or what kind of power you’re putting down. All the power you put into the pedals propels you one direction–forward—allowing the suspension to do its job completely independent of drivetrain and braking forces, and making the sag setting much less important. When we first rode the largely-unknown CBF system, we knew it was something special, and we knew we could make the best riding carbon mountain bikes using this magical formula.

All Revel frames are covered under a lifetime warranty against manufacturer defects, for the original owner.

More information about our warranty policy can be found here.
Crash Replacement information can be found here.


Frame Revel Rascal 29" 130mm Travel
Fork DVO Diamond D1 29" 140mm Boost 44 - Black
Headset Cane Creek 40 series IS42/IS52 Headset
Rear Shock 2020 Rockshox Super Deluxe SEL 210x50-22.2x 8 Hardware Rascal Spec
Rims/Wheels Industry Nine Wheelset Enduro S 29"
Hubs Industry Nine 1/1 Boost XD - Black
Tires Maxxis Aggressor 29x2.3 DC/EXO/TR / Maxxis Minion DHF 29 x 2.50 WT 3C EXO TR
Crankset SRAM Crank GX Eagle Boost Dub 170 32t - Lunar
Bottom Bracket SRAM DUB BB English Thread 73mm MTB
Chain SRAM X01 Eagle Chain 126links
Front Derailleur n/a
Rear Derailleur SRAM Rear Derailleur GX Eagle - Lunar
Rear Cogs SRAM Cassette XG1275 GX Eagle 10-52 - Black
Shifters SRAM Shifter GX Eagle - Lunar
Handlebars RaceFace Handlebar Aeffect R 35x780 20mm Rise - Black
Tape/Grips Lizard Skins Charger Evo Grip - Black
Stem RaceFace Stem Aeffect R 35x40mm
Brake Levers SRAM G2 R
Brakes SRAM G2 R
Pedals Not included
Saddle WTB Volt CroMo - Black
Seat Post Crank Brothers Highline 7 Dropper 31.6 x (Large: 170mm, Medium: 150mm)
Seat Binder Revel Seat Clamp 34.9 Black
Accessories & Extras Set up tubeless

* Subject to change without notice.
